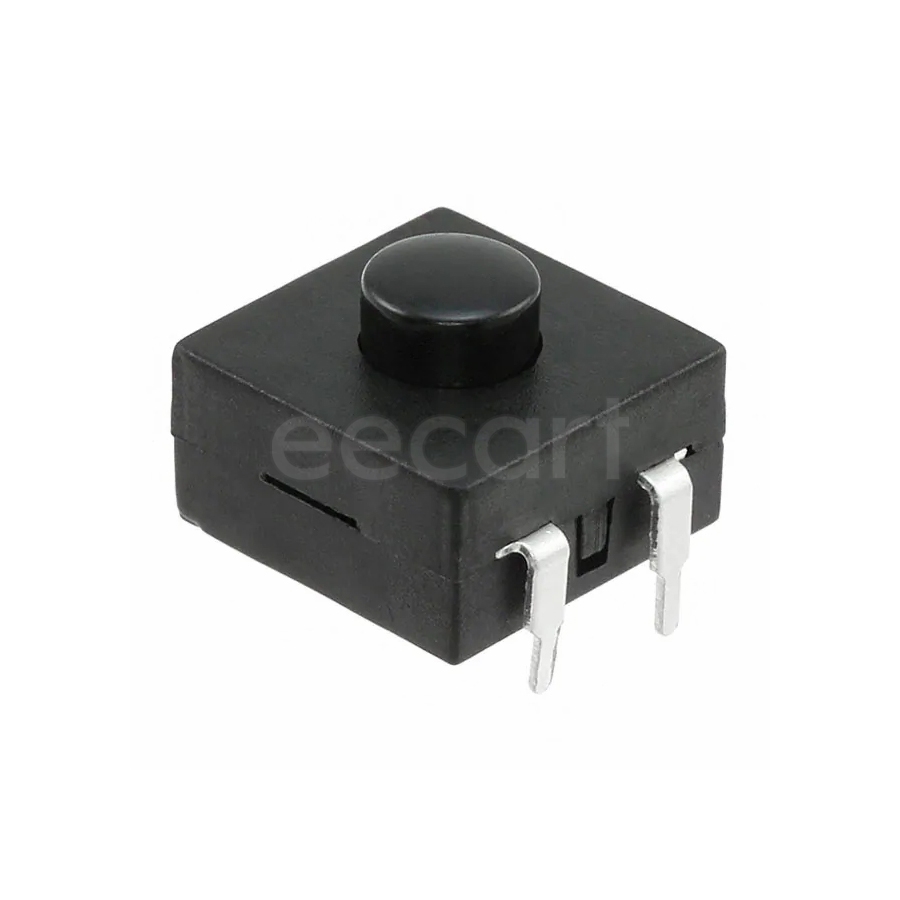

GPTS203211B
Manufacturer:
CW Industries
Mfr.Part #:
GPTS203211B
Datasheet:
Description:
Pushbutton Switches Through Hole SPST Off-On Round Button Non-Illuminated Standard Current Rating:1 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 12 mm |
| Width | 12 mm |
| Termination | PC Pin |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 2 |
| Circuit Type | SPST |
| Packaging | Bulk |
| RoHS | Compliant |
| Type | Standard |
| Current Rating | 1 A |
| Flammability Rating | UL94V-2 |
| Throw Configuration | SPST |
| Switch Function | Off-On |
| Illumination Type | Non-Illuminated |
| Electrical Life | 20 kcycles |
| Mechanical Life | 20 kcycles |
| Actuator Type | Round Button |
| Termination Style | PC Pin |
| Life (Cycles) | 20 kCycles |
| Cap Color | Black |
Stock: 315
Distributors
pcbx
pcbxUnit Price$1.20144
Ext.Price$1.20144
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.20144 | $1.20144 |
| 10 | $1.03605 | $10.36050 |
| 25 | $0.97725 | $24.43125 |
| 50 | $0.93496 | $46.74800 |
| 100 | $0.89442 | $89.44200 |
| 300 | $0.84939 | $254.81700 |
| 500 | $0.80663 | $403.31500 |
| 1000 | $0.77144 | $771.44000 |
